Timing Belts Pulley

Timing belt pulleys

Timing belt pulleys

are modified pulleys with either teeth or pockets around the outside diameter of the pulley body. Timing teeth are inserted into the metal belt holes, while timing pockets are inserted into the inner circumference of the belt. These teeth or pockets are mainly used for timing, not just for power transmission. The driving movement of the belt itself is carried out by friction between the flat belt and the pulley surfaces. we are timing belt pulley manufacturer and supplier in vadodara.

The timing belt is one way of regulating the opening and closing of the engine valves by connecting the crankshaft to the camshaft of the vehicle. The

timing belt pulleys

can help to provide additional track routing for the belt.

Timing belt pulleys

Timing belt pulleys

Timing belt pulleys 2

Timing belt pulleys 2

Timing belt pulleys 3

Timing belt pulleys 3

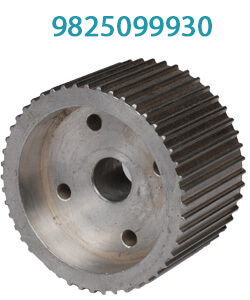

Timing belt pulleys 4

Timing belt pulleys 4

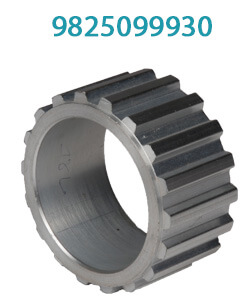

Timing belt pulleys 5

Timing belt pulleys 5

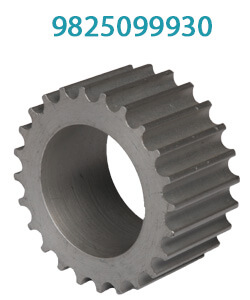

Timing belt pulleys 6

Timing belt pulleys 6

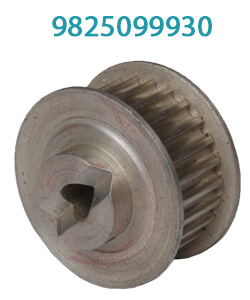

Timing belt pulleys 7

Timing belt pulleys 7

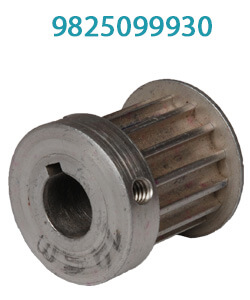

Timing belt pulleys 8

Timing belt pulleys 8

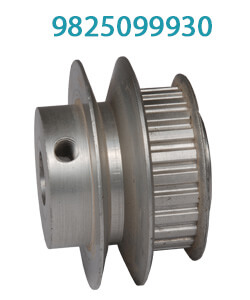

Timing belt pulleys 9

Timing belt pulleys 9

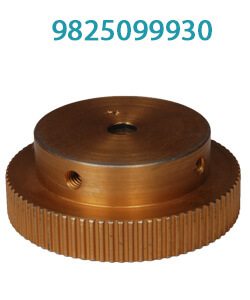

Timing belt pulleys 10

Timing belt pulleys 10

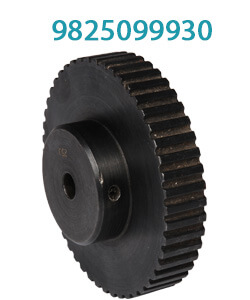

Timing belt pulleys 11

Timing belt pulleys 11

Timing belt pulleys 12

Timing belt pulleys 12

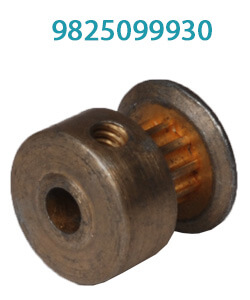

Timing belt pulleys 13

Timing belt pulleys 13

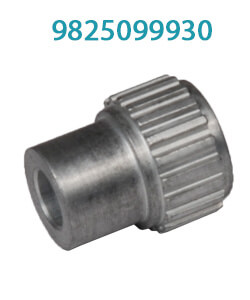

Timing belt pulleys 14

Timing belt pulleys 14

PITCH : "MXL" (1/5") 2.032mm

Number of Grooves Outside Diameter MM
10 5.97
12 7.26
14 8.56
15 9.19
16 9.83
18 11.12
20 12.42
22 13.72
24 15.01
28 17.60
30 19.89
32 20.19
36 22.78
14 25.37
42 26.67
48 30.53
60 38.30
72 46.05
80 51.23

PITCH : "XL" (1/5") 5.08mm

Pulley Code No. No.of Teeth Material Alu./St. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
10 XL 10 Alu./St. 16.17 15.66 6.35 (1/4")
11 XL 11 Alu./St. 17.79 17.28 6.35 (1/4")
12 XL 12 Alu./St. 19.40 18.90 9.52 (3/8")
14 XL 14 Alu./St. 22.64 22.13 9.52 (3/8")
15 XL 15 Alu./St. 24.26 23.75 12.70 (1/2")
16 XL 16 Alu./St. 25.87 25.36 12.70 (1/2")
18 XL 18 Alu./St. 29.11 28.60 12.70 (1/2")
20 XL 20 Alu./St. 32.34 31.33 12.70 (1/2")
21 XL 21 Alu./St. 33.96 33.45 19.05 (7/8")
22 XL 22 Alu./St. 35.57 35.07 19.05 (7/8")
24 XL 24 Alu./St. 38.81 38.30 19.05 (7/8")
26 XL 26 Alu./St. 42.04 41.53 19.05 (7/8")
28 XL 28 Alu./St. 45.28 44.77 19.05 (7/8")
30 XL 30 Alu./St. 48.51 48.00 19.05 (7/8")
32 XL 31 Alu./St. 51.74 51.24 19.05 (7/8")
36 XL 36 Alu./St. 58.21 57.70 19.05 (7/8")
40 XL 40 Alu./St. 64.68 64.17 19.05 (7/8")
42 XL 42 Alu./St. 67.91 67.41 19.05 (7/8")
44 XL 44 Alu./St. 71.15 70.64 19.05 (7/8")
48 XL 48 Alu./St. 77.62 77.11 19.05 (7/8")
60 XL 60 Alu./St. 97.02 98.51 19.05 (7/8")
72 XL 72 Alu./St. 116.63 115.92 19.05 (7/8")

PITCH : "L" (3/8") 9.525mm

Pulley Code No. No.of Teeth Material Alu./St. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
10 L 10 Alu./St. 30.32 29.56 9.52 (3/8")
12 L 12 Alu./St. 36.38 35.62 9.52 (3/8")
13 L 13 Alu./St. 39.61 38.65 9.52 (3/8")
14 L 14 Alu./St. 42.45 41.68 9.52 (3/8")
15 L 15 Alu./St. 45.48 44.72 12.70 (1/2")
16 L 16 Alu./St. 48.51 47.75 12.70 (1/2")
17 L 17 Alu./St. 51.54 50.78 12.70 (1/2")
18 L 18 Alu./St. 54.57 53.81 12.70 (1/2")
19 L 19 Alu./St. 57.61 56.84 19.05 (7/8")
20 L 20 Alu./St. 60.64 59.88 19.05 (7/8")
21 L 21 Alu./St. 63.67 62.91 19.05 (7/8")
22 L 22 Alu./St. 66.70 65.94 19.05 (7/8")
24 L 24 Alu./St. 72.77 72.00 19.05 (7/8")
26 L 26 Alu./St. 78.83 78.07 19.05 (7/8")
28 L 28 Alu./St. 84.89 84.13 19.05 (7/8")
30 L 30 Alu./St. 90.96 90.20 19.05 (7/8")
32 L 31 Alu./St. 97.02 96.26 19.05 (7/8")
36 L 36 Alu./St. 109.15 108.39 19.05 (7/8")
40 L 40 Alu./St. 121.28 120.51 25.40 (1.000")
44 L 44 Alu./St. 133.40 135.64 25.40 (1.000")
48 L 48 Alu./St. 145.53 144.77 25.40 (1.000")
60 L 60 Alu./St. 181.91 181.15 25.40 (1.000")
72 L 72 Alu./St. 218.30 217.56 25.40 (1.000")
84 L 84 Alu./St. 254.68 253.92 25.40 (1.000")

PITCH : "H" (1/2") 12.70mm

Pulley Code No. No.of Teeth Material ST./C.I. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
14 H 14 ST. 30.32 29.56 9.52 (3/8")
16 H 16 ST. 64.68 63.31 9.52 (3/8")
18 H 18 ST. 72.77 71.39 9.52 (3/8")
19 H 19 ST. 76.81 75.44 9.52 (3/8")
20 H 20 ST. 80.85 79.48 12.70 (1/2")
21 H 21 ST. 84.89 83.52 12.70 (1/2")
22 H 22 ST. 88.94 87.56 12.70 (1/2")
24 H 24 ST. 97.02 95.65 12.70 (1/2")
26 H 26 ST. 105.11 103.73 19.05 (7/8")
28 H 28 ST. 113.19 111.82 19.05 (7/8")
30 H 30 ST. 121.28 111.90 19.05 (7/8")
32 H 32 ST. 129.36 127.99 19.05 (7/8")
36 H 36 ST. 145.53 144.16 19.05 (7/8")
40 H 40 ST. 161.70 160.33 19.05 (7/8")
44 H 44 ST. 177.87 176.50 19.05 (7/8")
48 H 48 ST. 194.04 192.67 19.05 (7/8")
60 H 60 C.I. 244.55 241.18 19.05 (7/8")
72 H 72 C.I. 291.06 289.69 19.05 (7/8")
84 H 84 C.I. 339.57 338.20 25.40 (1.000")
96 H 96 C.I. 388.08 386.71 25.40 (1.000")
120 H 120 C.I. 485.10 483.73 25.40 (1.000")

PITCH : "XH" (7/8") 22.225mm

Pulley Code No. No.of Teeth Material ST./C.I. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
18 XH 18 ST. 127.34 124.55 25.40 (1.000")
20 XH 20 ST. 141.91 138.69 25.40 (1.000")
22 XH 22 ST. 155.64 155.84 25.40 (1.000")
24 XH 24 ST. 169.79 166.99 25.40 (1.000")
26 XH 26 ST. 183.94 181.14 25.40 (1.000")
28 XH 28 ST. 198.08 195.29 25.40 (1.000")
30 XH 30 ST. 212.23 209.44 25.40 (1.000")
32 XH 32 C.I. 226.38 223.59 25.40 (1.000")
40 XH 40 C.I. 282.98 280.18 25.40 (1.000")
48 XH 48 C.I. 339.57 336.78 25.40 (1.000")
60 XH 60 C.I. 424.47 421.67 25.40 (1.000")
72 XH 72 C.I. 509.36 506.57 25.40 (1.000")
84 XH 84 C.I. 594.25 591.46 25.40 (1.000")
96 XH 96 C.I. 679.15 676.35 25.40 (1.000")
120 XH 120 C.I. 848.93 846.14 25.40 (1.000")

PITCH : "XXH" (1.1/4") 31.75mm

Pulley Code No. No.of Teeth Material ST./C.I. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
18 XXH 18 ST./C.I. 181.91 178.87 25.40 (1.000")
19 XXH 19 ST./C.I. 192.02 188.97 25.40(1.000")
20 XXH 20 ST./C.I. 202.13 199.08 25.40 (1.000")
21 XXH 21 ST./C.I. 212.23 209.19 25.40 (1.000")
22 XXH 22 ST./C.I. 222.34 219.29 25.40 (1.000")
24 XXH 24 ST./C.I. 242.55 239.50 25.40 (1.000")
25 XXH 25 ST./C.I. 252.66 249.61 25.40 (1.000")
26 XXH 26 C.I. 262.76 259.79 25.40 (1.000")
27 XXH 27 C.I. 272.87 269.82 25.40 (1.000")
30 XXH 30 C.I. 303.19 300.14 25.40 (1.000")
34 XXH 34 C.I. 343.62 340.57 25.40 (1.000")
40 XXH 40 C.I. 404.25 401.21 25.40 (1.000")
48 XXH 48 C.I. 485.10 482.06 25.40 (1.000")
60 XXH 60 C.I. 606.38 603.33 25.40 (1.000")
72 XXH 72 C.I. 727.66 724.61 25.40 (1.000")
90 XXH 90 C.I. 909.57 906.52 25.40 (1.000")

PITCH : "T" 2.5" 2.50mm

Pulley Code No. No.of Teeth Material Alu./St. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
10 T 2.5 10 Alu./St. 8.05 7.45 -
12 T 2.5 12 Alu./St. 9.55 9.00 -
13 T 2.5 13 Alu./St. 10.40 9.80 -
14 T 2.5 14 Alu./St. 11.14 10.60 -
15 T 2.5 15 Alu./St. 11.94 11.40 -
16 T 2.5 16 Alu./St. 12.73 12.20 -
18 T 2.5 18 Alu./St. 14.32 13.80 4.00
19 T 2.5 19 Alu./St. 15.12 14.60 4.00
20 T 2.5 20 Alu./St. 15.92 15.40 4.00
22 T 2.5 22 Alu./St. 17.51 17.00 4.00
24 T 2.5 24 Alu./St. 19.10 18.55 4.00
25 T 2.5 25 Alu./St. 19.89 19.35 4.00
26 T 2.5 26 Alu./St. 20.69 20.15 4.00
28 T 2.5 28 Alu./St. 22.28 21.75 4.00
30 T 2.5 30 Alu./St. 23.87 23.35 6.00
32 T 2.5 32 Alu./St. 25.46 24.95 6.00
36 T 2.5 36 Alu./St. 28.65 28.10 6.00
40 T 2.5 40 Alu./St. 31.83 31.30 6.00
44 T 2.5 44 Alu./St. 35.01 34.50 6.00
48 T 2.5 48 Alu./St. 38.20 37.70 6.00
60 T 2.5 60 Alu./St. 47.75 47.25 6.00
72 T 2.5 72 Alu./St. 57.40 56.80 6.00

PITCH : "3M HTD" 3.00mm

Pulley Code No. No.of Teeth Material Alu./St. P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
10 3M HTD 10 Alu./St. 9.55 8.79 -
12 3M HTD 12 Alu./St. 11.46 10.70 -
13 3M HTD 13 Alu./St. 12.41 11.65 -
14 3M HTD 14 Alu./St. 13.37 12.61 -
15 3M HTD 15 Alu./St. 14.32 13.56 -
16 3M HTD 16 Alu./St. 15.28 14.52 -
18 3M HTD 18 Alu./St. 17.19 16.43 4.00
20 3M HTD 20 Alu./St. 19.10 18.34 4.00
21 3M HTD 21 Alu./St. 20.05 19.29 4.00
22 3M HTD 22 Alu./St. 21.01 20.25 4.00
24 3M HTD 24 Alu./St. 22.92 22.16 4.00
26 3M HTD 26 Alu./St. 24.83 24.07 4.00
28 3M HTD 28 Alu./St. 26.74 25.98 6.00
30 3M HTD 30 Alu./St. 28.65 27.89 6.00
32 3M HTD 32 Alu./St. 30.56 29.80 6.00
36 3M HTD 36 Alu./St. 34.38 33.62 6.00
40 3M HTD 40 Alu./St. 38.20 37.44 6.00
42 3M HTD 42 Alu./St. 40.11 39.34 6.00
44 3M HTD 44 Alu./St. 42.02 41.26 6.00
48 3M HTD 48 Alu./St. 45.84 45.08 8.00
60 3M HTD 60 Alu./St. 57.30 56.64 8.00
72 3M HTD 72 Alu./St. 68.75 67.99 8.00

PITCH : "8M HTD" 8.00mm

Pulley Code No. No.of Teeth Material S.T./C.I P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
22 8MHTD 22 S.T./C.I 56.02 54.65 8.00
24 8MHTD 24 S.T./C.I 64.12 59.75 8.00
26 8MHTD 26 S.T./C.I 66.21 64.84 8.00
28 8MHTD 28 S.T./C.I 71.30 70.08 10.00
30 8MHTD 30 S.T./C.I 76.39 75.13 10.00
32 8MHTD 32 S.T./C.I 81.49 80.16 10.00
34 8MHTD 34 S.T./C.I 86.58 85.22 10.00
36 8MHTD 36 S.T./C.I 91.67 90.30 10.00
38 8MHTD 38 S.T./C.I 96.77 95.39 10.00
40 8MHTD 40 S.T./C.I 110.86 100.49 12.00
42 8MHTD 42 S.T./C.I 106.95 105.58 12.00
44 8MHTD 44 S.T./C.I 112.05 110.67 12.00
48 8MHTD 48 S.T./C.I 122.23 120.86 12.00
60 8MHTD 60 S.T./C.I 152.79 151.42 12.00
64 8MHTD 64 S.T./C.I 162.97 161.60 18.00
72 8MHTD 72 S.T./C.I 183.35 181.97 18.00
80 8MHTD 80 S.T./C.I 203.72 202.35 18.00
90 8MHTD 90 S.T./C.I 229.18 227.81 18.00
112 8MHTD 112 C.I 285.21 283.83 20.00
144 8MHTD 144 C.I 366.69 365.32 20.00
168 8MHTD 168 C.I 427.81 426.44 20.00
192 8MHTD 192 C.I 488.92 487.55 20.00

PITCH : "T 10 " 10mm

Pulley Code No. No.of Teeth Material Alu./ST P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
18 T 10 18 Alu./ST 57.30 55.45 12.07 (1/2")
19 T 10 19 Alu./ST 60.48 58.60 12.07 (1/2")
20 T 10 20 Alu./ST 63.66 61.80 12.07 (1/2")
22 T 10 22 Alu./ST 70.03 68.15 12.07 (1/2")
24 T 10 24 Alu./ST 76.39 74.55 12.07 (1/2")
25 T 10 25 Alu./ST 79.58 77.70 12.07 (1/2")
26 T 10 26 Alu./ST 82.76 80.80 12.07 (1/2")
27 T 10 27 Alu./ST 85.94 84.10 12.07 (1/2")
28 T 10 28 Alu./ST 89.13 87.25 12.07 (1/2")
30 T 10 30 Alu./ST 95.49 93.65 12.07 (1/2")
32 T 10 32 Alu./ST 101.86 100.00 12.07 (1/2")
36 T 10 36 Alu./ST 114.59 112.75 12.07 (1/2")
40 T 10 40 Alu./ST 127.32 125.45 12.07 (1/2")
44 T 10 44 Alu./ST 140.06 138.20 12.07 (1/2")
48 T 10 48 Alu./ST 152.79 150.95 12.07 (1/2")
60 T 10 60 Alu./ST 190.99 189.10 12.07 (1/2")

PITCH : "14M HTD" 14.00mm

Pulley Code No. No.of Teeth Material S.T./C.I P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
28 14M HTD 28 S.T./C.I 124.78 124.12 12.00
30 14M HTD 30 S.T./C.I 133.69 130.99 12.00
32 14M HTD 32 S.T./C.I 142.60 139.88 12.00
34 14M HTD 34 S.T./C.I 151.52 148.79 15.00
36 14M HTD 36 S.T./C.I 160.43 157.68 15.00
38 14M HTD 38 S.T./C.I 169.34 166.60 15.00
40 14M HTD 40 S.T./C.I 178.25 175.49 15.00
44 14M HTD 44 S.T./C.I 196.08 193.28 20.00
48 14M HTD 48 S.T./C.I 213.90 211.11 20.00
64 14M HTD 64 C.I. 285.21 282.41 20.00
72 14M HTD 72 C.I. 320.86 318.06 20.00
80 14M HTD 80 C.I. 356.51 353.71 25.00
90 14M HTD 90 C.I. 401.07 398.28 25.00
112 14M HTD 112 C.I. 499.11 496.32 25.00
144 14M HTD 144 C.I. 641.71 638.92 40.00
168 14M HTD 168 C.I. 748.66 745.87 40.00
192 14M HTD 192 C.I. 855.62 652.82 40.00
216 14M HTD 216 C.I. 962.57 959.76 40.00

PITCH : "20M HTD" 20.00mm

Pulley Code No. No.of Teeth Material S.T./C.I P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
34 20M HTD 34 S.T./C.I. 216.45 212.13 25.00
36 20M HTD 36 S.T./C.I 229.18 224.87 25.00
38 20M HTD 38 S.T./C.I. 242.92 237.60 25.00
40 20M HTD 40 S.T./C.I. 254.65 250.33 25.00
44 20M HTD 44 C.I. 280.11 275.79 25.00
48 20M HTD 48 C.I. 305.58 301.26 25.00
60 20M HTD 60 C.I. 381.97 377.65 30.00
64 20M HTD 64 C.I. 407.44 403.12 30.00
72 20M HTD 72 C.I. 458.37 454.05 30.00
80 20M HTD 80 C.I. 509.30 504.98 40.00
90 20M HTD 90 C.I. 572.96 568.64 40.00
112 20M HTD 112 C.I. 713.01 708.70 40.00
144 20M HTD 144 C.I. 916.73 912.41 40.00
168 20M HTD 168 C.I. 1069.52 1065.21 50.00
192 20M HTD 192 C.I. 1222.31 1218.00 50.00
216 20M HTD 216 C.I. 1375.10 1370.78 50.00

PITCH : "T 20" 20.00mm

Pulley Code No. No.of Teeth Material S.T./C.I P.C.D. Hob. Dia (O.D.) Max. Bore (I.D.)
18 T 20 18 S.T. 114.59 111.75 12.70 (1/2")
20 T 20 20 S.T. 127.32 124.50 12.70 (1/2")
22 T 20 22 S.T. 140.06 137.20 12.70 (1/2")
24 T 20 24 S.T. 152.79 149.95 12.70 (1/2")
25 T 20 25 S.T./C.I. 159.15 156.30 12.70 (1/2")
30 T 20 30 S.T./C.I. 190.99 188.15 12.70 (1/2")
32 T 20 32 S.T./C.I. 203.72 200.85 25.40 (1.000")
36 T 20 36 S.T./C.I. 229.18 226.35 25.40 (1.000")
40 T 20 40 C.I. 254.65 251.80 25.40 (1.000")
48 T 20 48 C.I. 305.58 302.70 25.40 (1.000")
60 T 20 60 C.I. 381.97 379.10 25.40 (1.000")
72 T 20 72 C.I. 458.37 455.50 25.40 (1.000")
